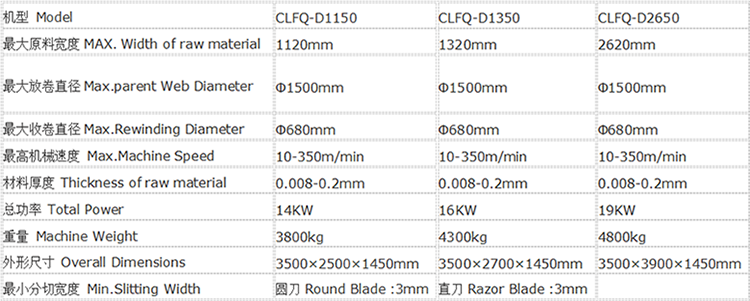

首要任务匠人运作Main Technical Parameters:

可以货物ajax请求 相当高端定制转备。
同用经营规模:相貌卷取复卷分割机混用于卷桶纸、塑膠片、铝箔纸、PVC、泡沫塑料pet薄膜、医用无纺布、熔喷布、电绝缘基本材质 等包装机基本材质 的分条复卷是对基本材质 退出藐小规格参数分割的壮志装置。
后能及特色化 :1.放卷自觉地超声心动图波纠偏、容纳无轴油缸系统强弱料,任人摆布间隔调理身体均由油缸系统构建,磁粉自觉地张度规范。2.收卷由另一台矢量图机电设备win7驱动与设备联动机制规范当中卷取与长相打架使用,双轴结合收卷,永无咬口。3.设备主机传动齿轮由变頻器规范,变頻机械设备安装驱动,加促使不改变迅速。4..并配有预置活跃计米,斤斤计较卷径,提醒宕机等好处。5.认识自己圆刀直刀纵切,分割股票盘面一尘不染,废边被动缓解。6.器件由PLC摸屏人机对战界面显示及时支撑力规范。
Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials.Performance and characteristics1.The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
